Home >>Products >>Hydraulic hoist

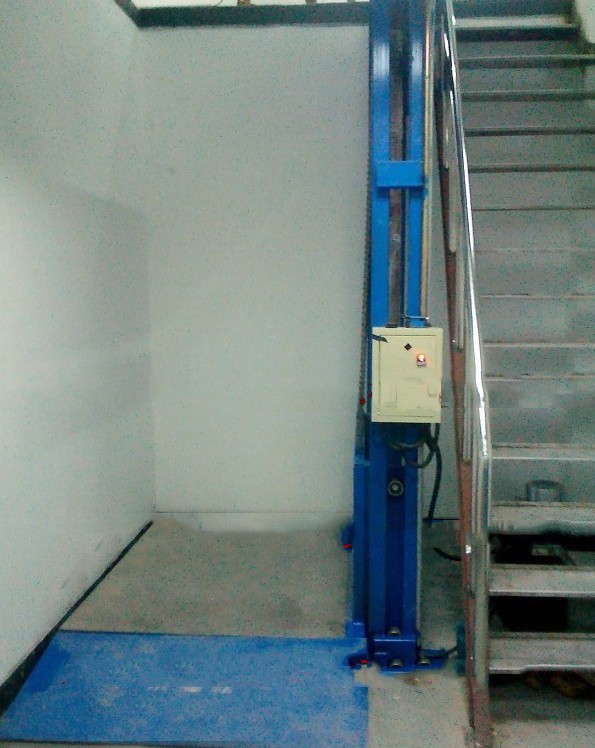

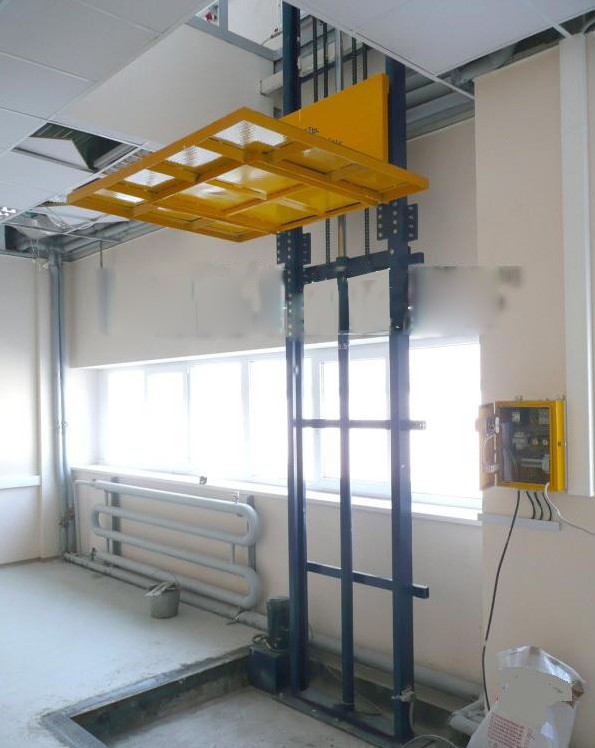

    Side lift hydraulic lift



    product manual:

    The rail lift is a non-scissor hydraulic lifting platform. Due to the minimum height of 150-300mm, it is suitable for industrial sites where the excavation pits and the opening of the shaft floor are small, and no upper lifting point is required. The products are mainly used for the transportation of goods between high-rise industrial plants, restaurants and restaurants on the second, third and fourth floors, such as single-column, double-column and four-column. The operation is stable and the operation is simple and reliable. It is currently the most ideal hydraulic lift freight elevator equipment.

    use:

    Can not reach the narrow space that is difficult to solve, such as occasions, can be tailored to create a highly efficient delivery platform, the product hydraulic system is set to prevent falling, the upper and lower doors are interactive interlocking, and the operation buttons can be set on each floor and the lifting table. Implement multi-point control. The product has firm structure, large carrying capacity, stable lifting, simple and convenient installation and maintenance, and is an ideal cargo conveying equipment for economical and practical replacement of elevators between low floors. According to the installation environment and use requirements of the lifting platform, different optional configurations can be selected to achieve better use. This product is mainly used in explosion-proof enterprises such as chemical industry, high temperature, high pressure, power plant and nuclear industry base.

    Features:

    The maximum load is 10 tons, multi-point control is realized, and the upper and lower floors are interlocked to achieve safe use. The lifting height is high, and the side-mounted oil cylinder or double-measuring oil cylinder is adopted. The operation is stable, no noise, convenient maintenance and long service life; Manual drop and emergency stop button are convenient, fast and practical; the depth of the pit is generally 15cm-30cm, the height of the top layer is not limited, and can be customized according to the site environment; the door can be penetrated, and the inside and outside of the plant can be poked together, which is convenient and economical. Space; especially suitable for 2-5 steel structure workshop, both internal and external can be used; pump station adopts domestic well-known pump station (Heckman), if the speed requirement is too high, the imported custom pump station is used to achieve the ideal delivery requirements. The seals are made of imported parts to solve the problem of unstable oil pressure, oil leakage of parts and components, and optional electrical parts (Zhejiang Zhengtai)

    Safety performance:

    The hydraulic elevator has the safety device of the traditional traction elevator. At the same time, it also has: overflow valve: it can prevent the system pressure from being too high when moving up. Emergency manual valve: When the power supply fails, the car can be lowered to the nearest emergency. Open the door in the floor position, manual pump: When the system fails, the manual pump can be operated to pump high pressure oil to raise the car to the nearest floor position; Pipeline rupture valve: When the hydraulic system pipe breaks the car stalls down, The oil path can be automatically cut off to stop the drop. Fuel tank oil temperature protection: When the oil temperature in the fuel tank exceeds the standard set value, the oil temperature protection device generates a signal, suspends the elevator use, and starts the elevator when the oil temperature drops.
